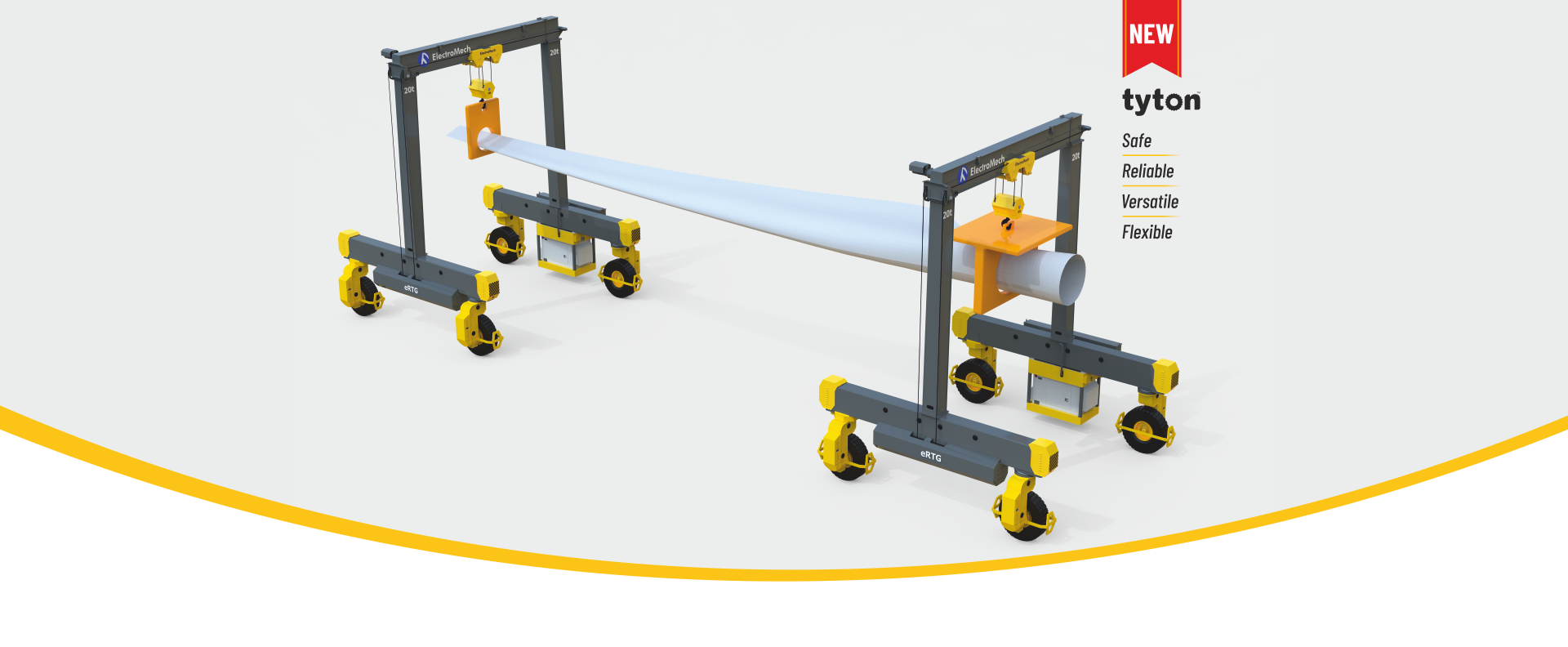

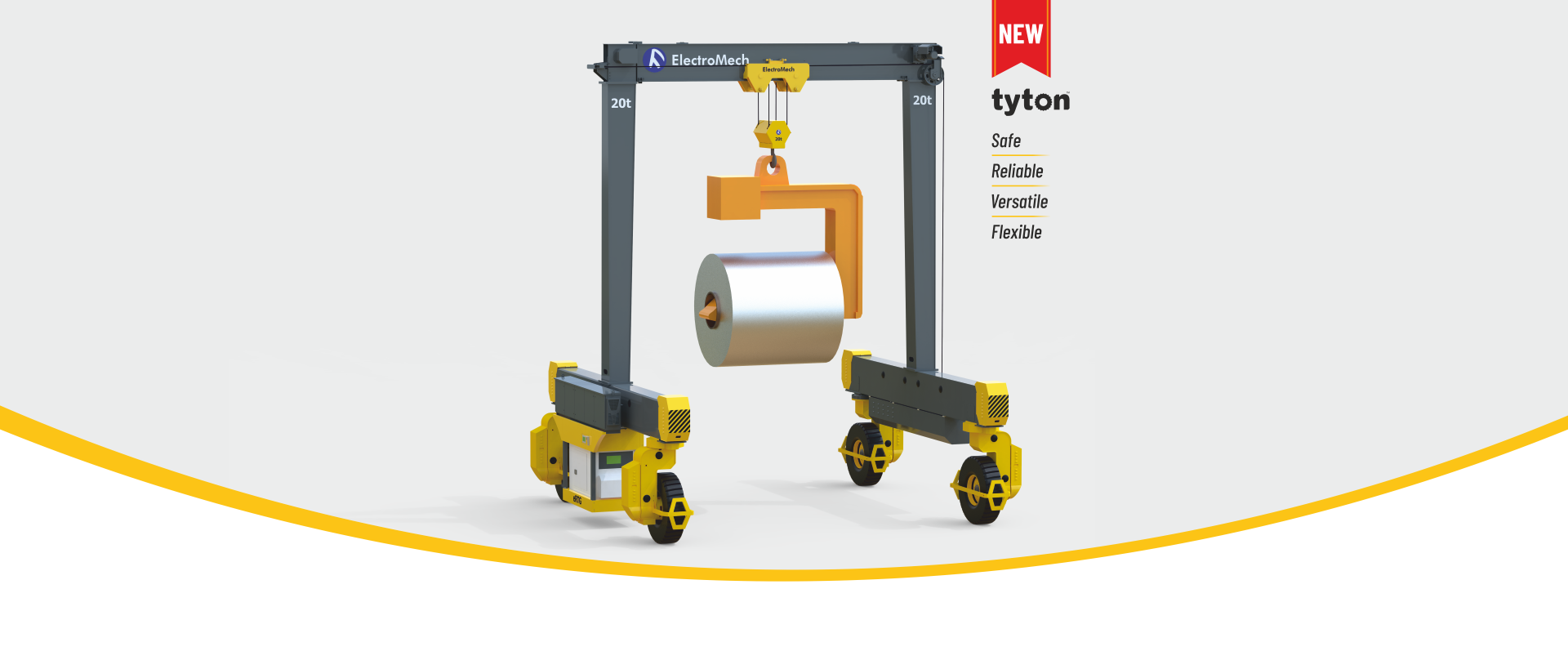

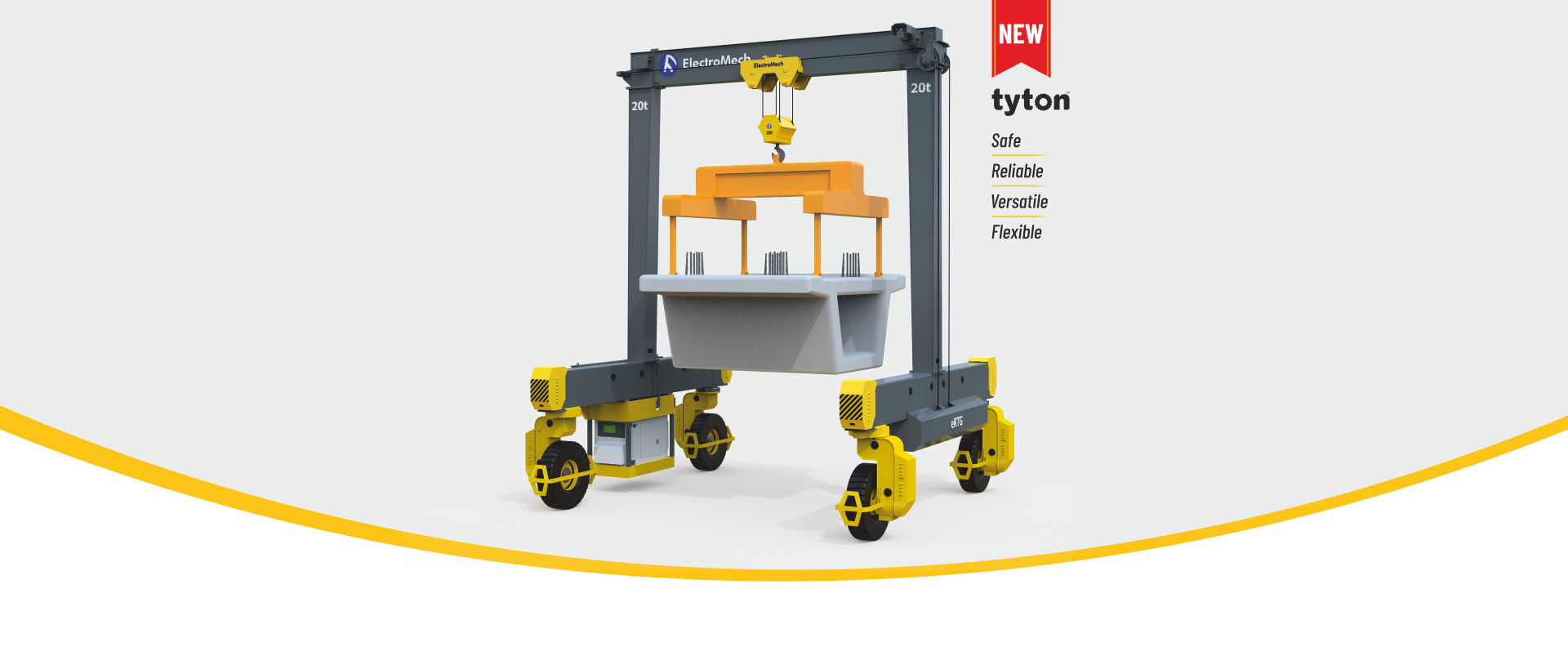

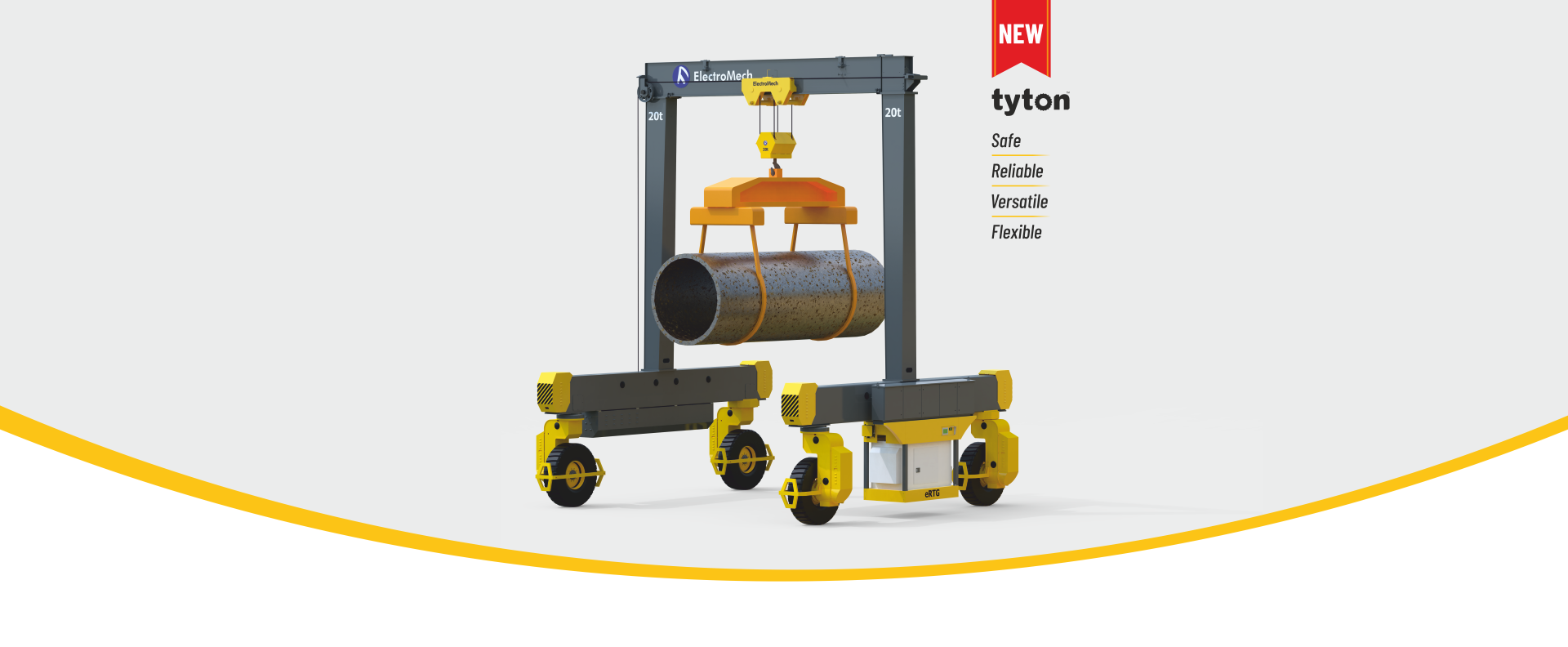

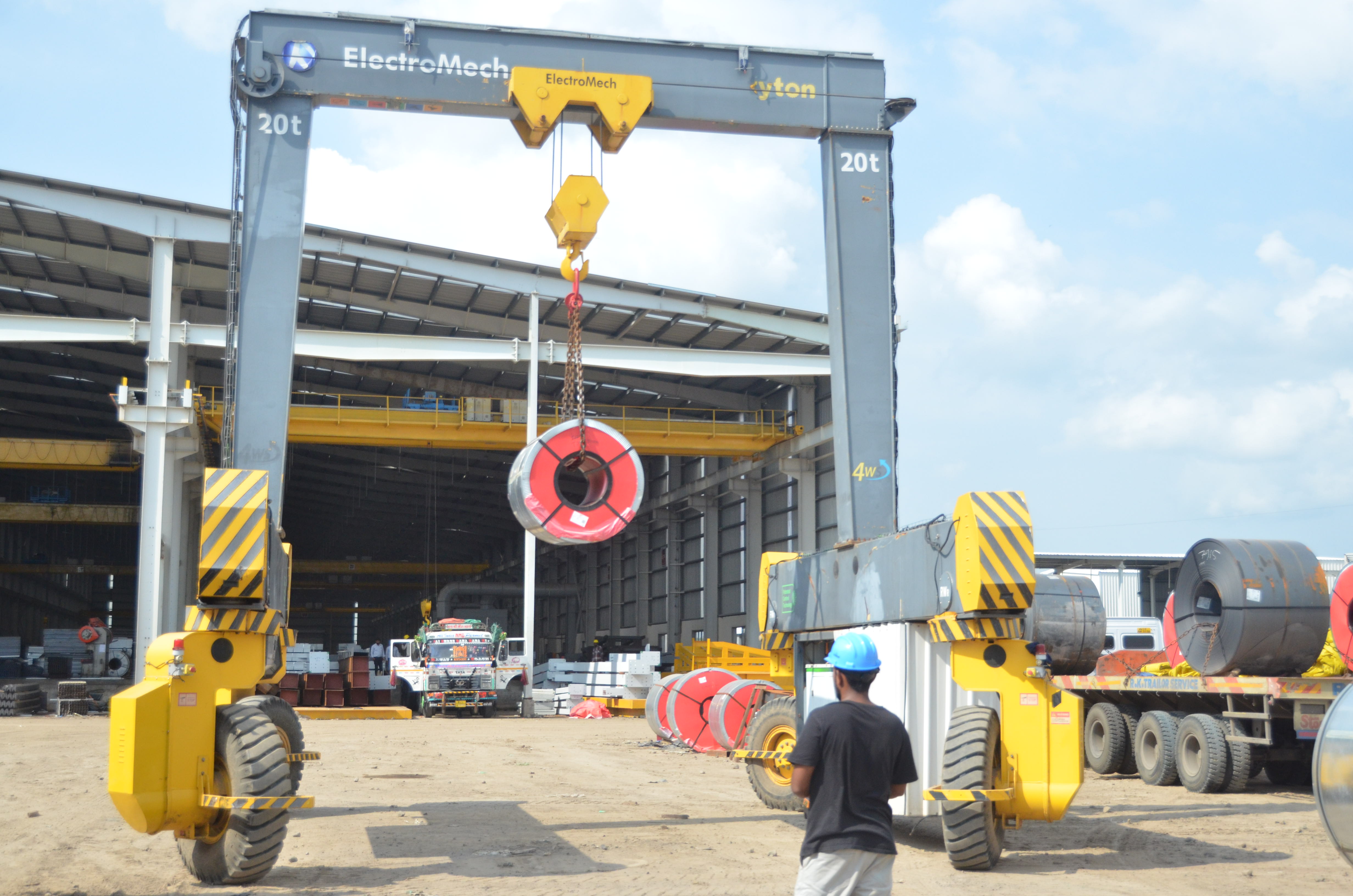

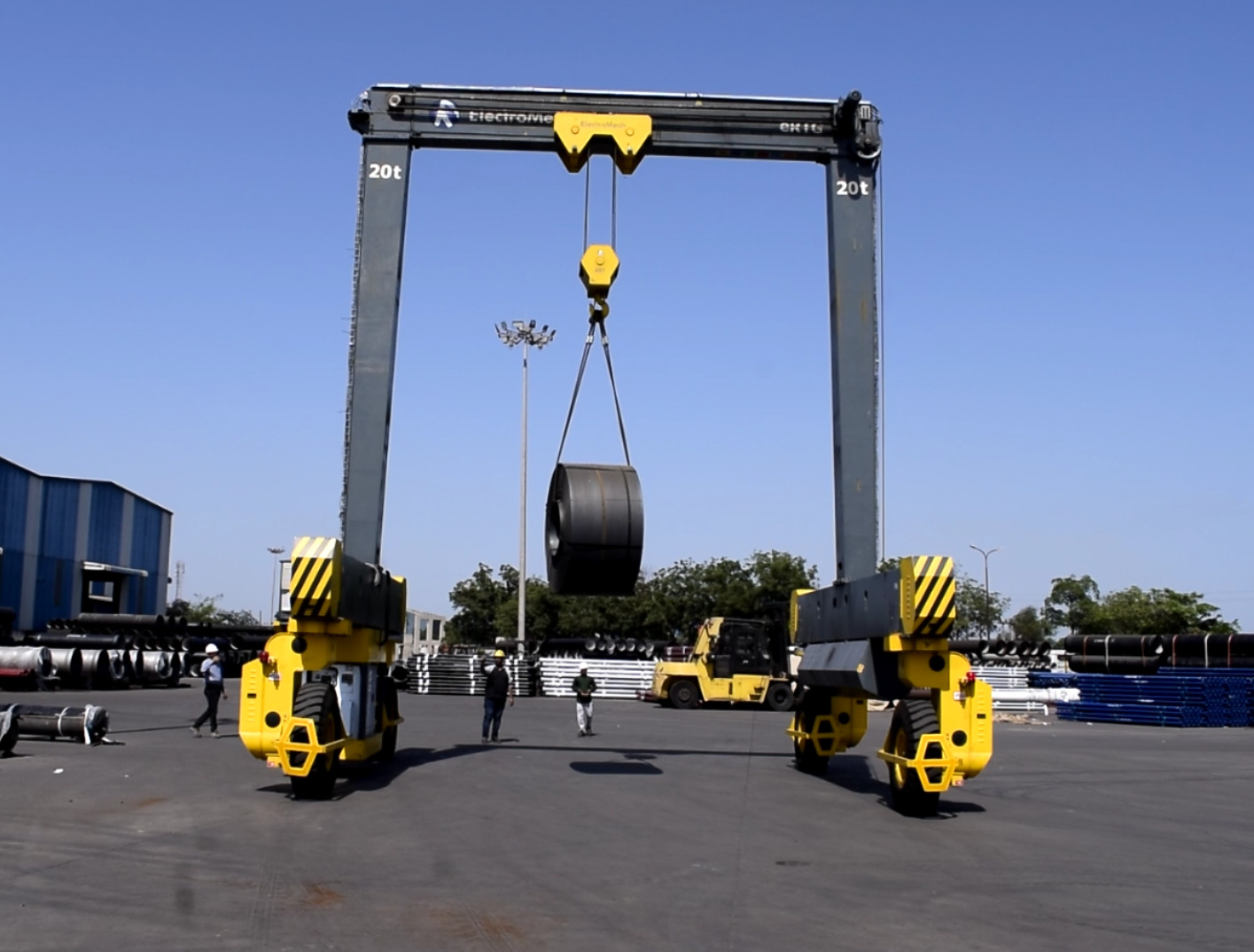

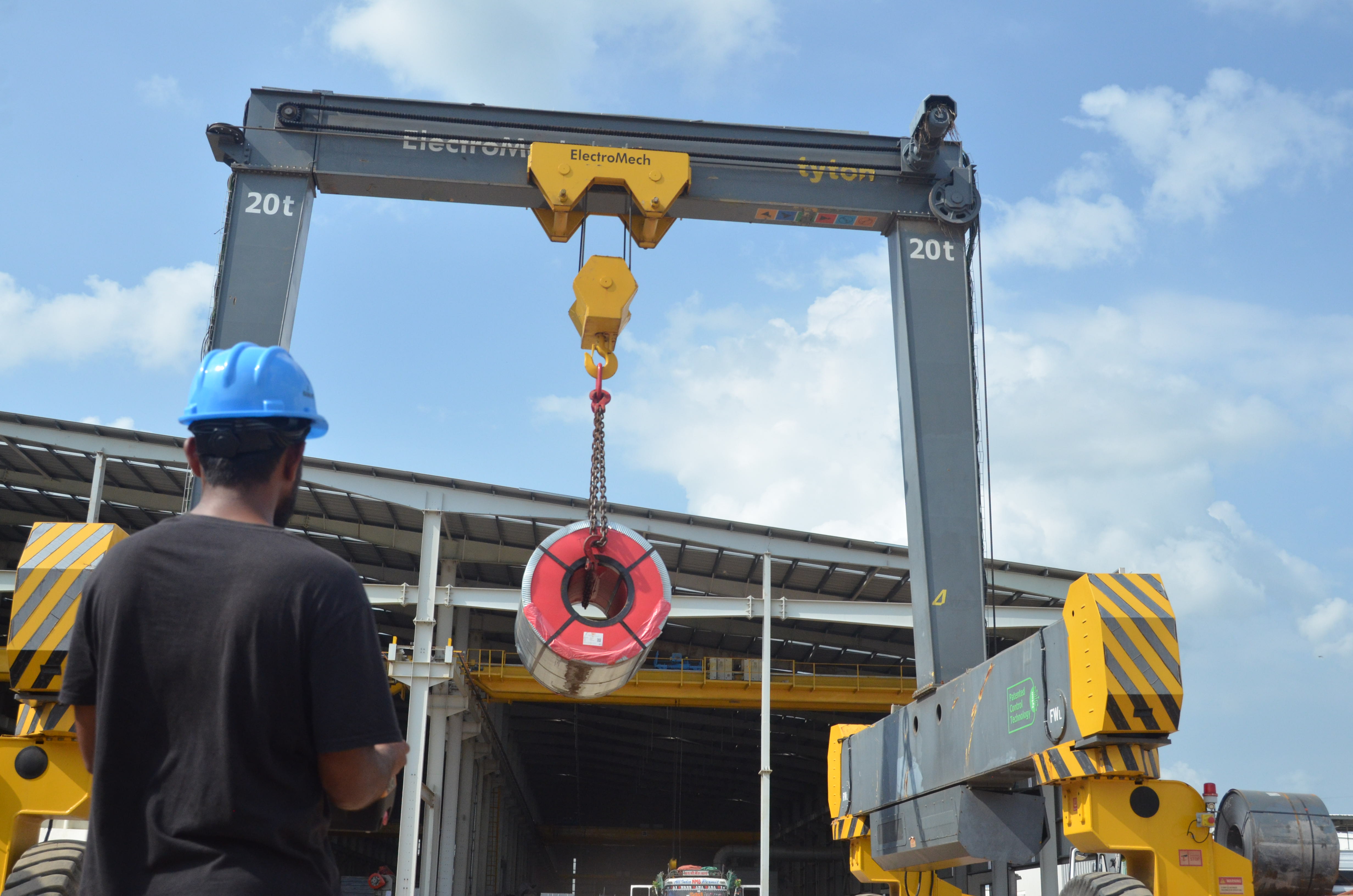

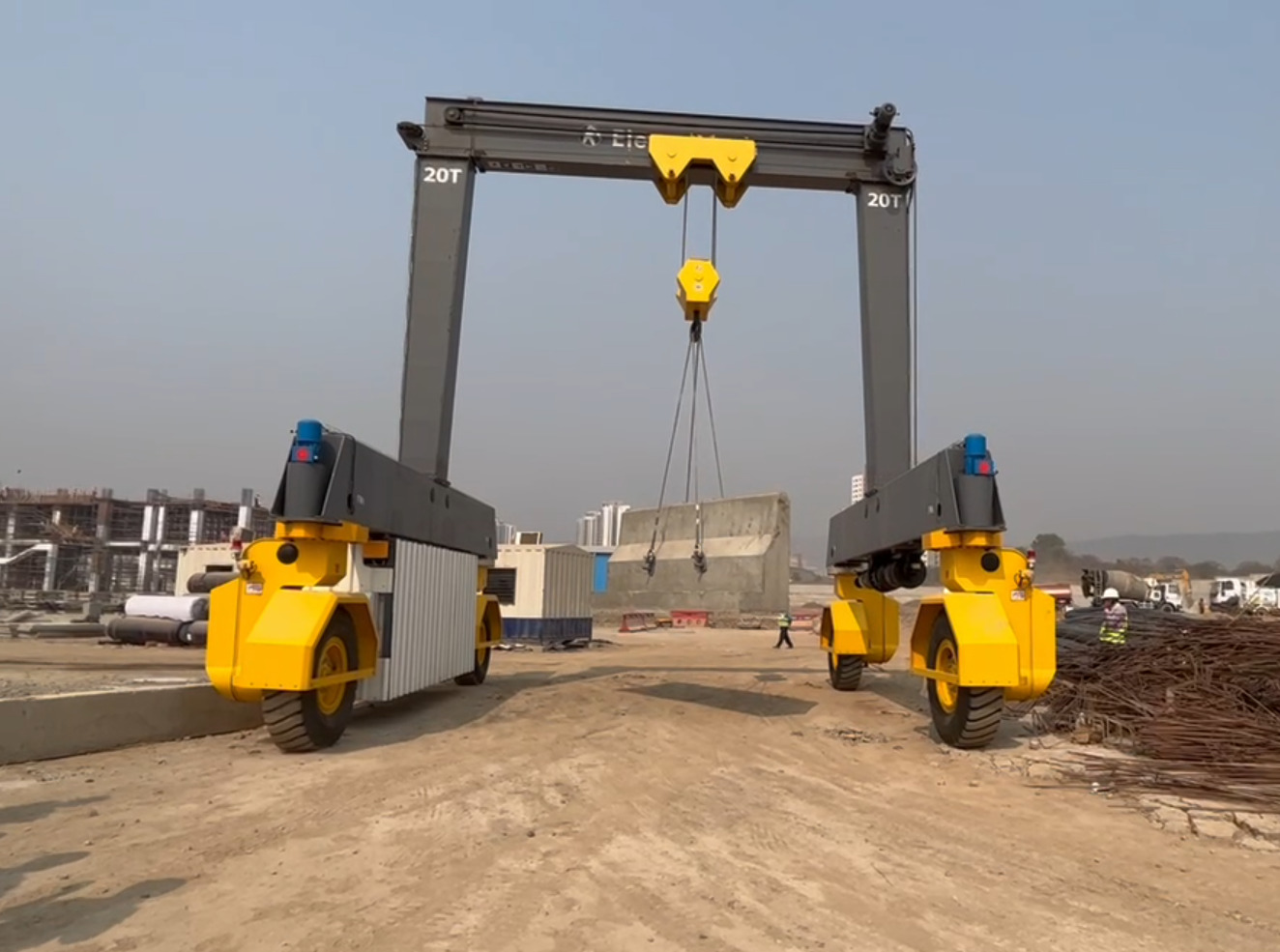

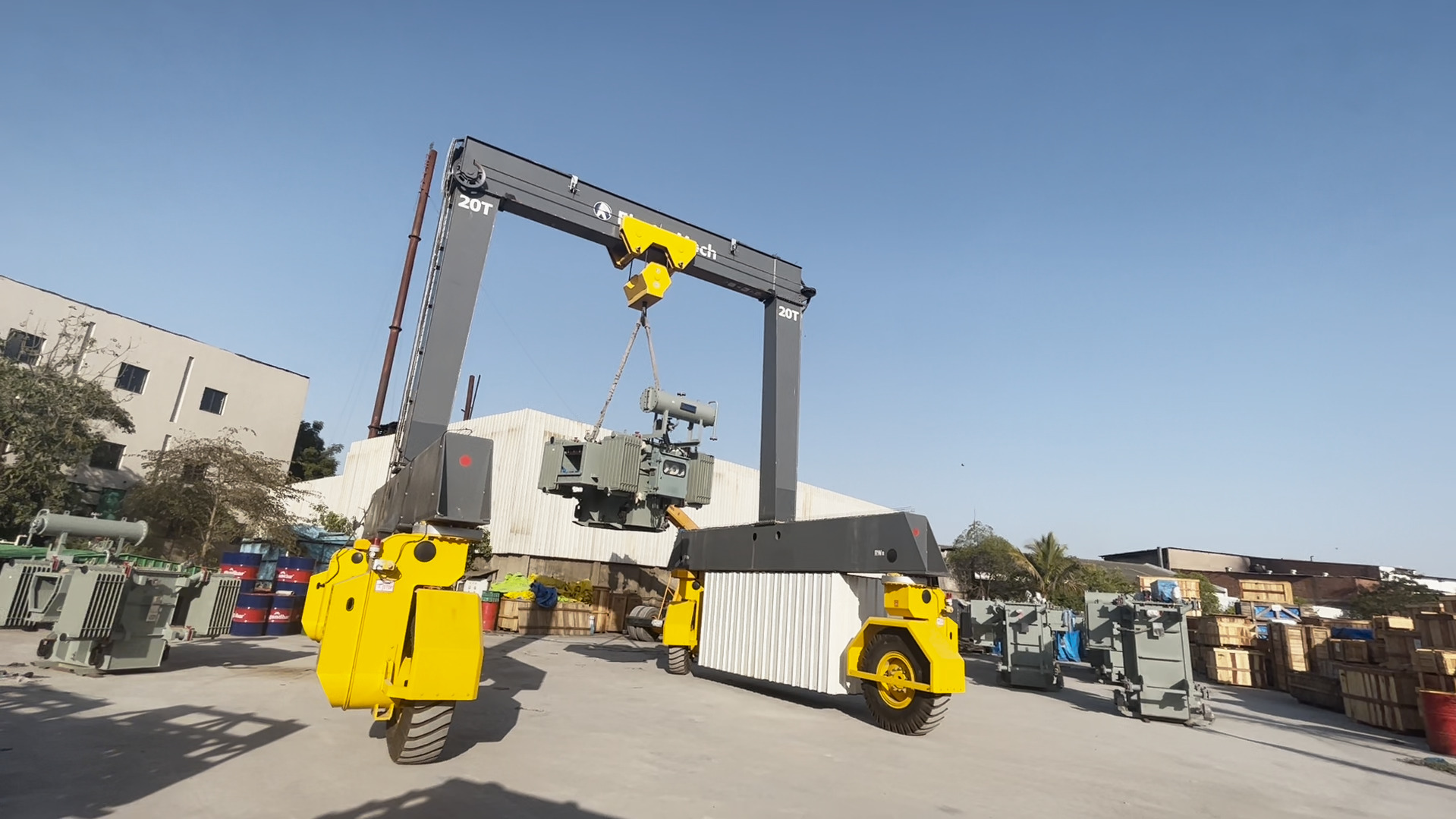

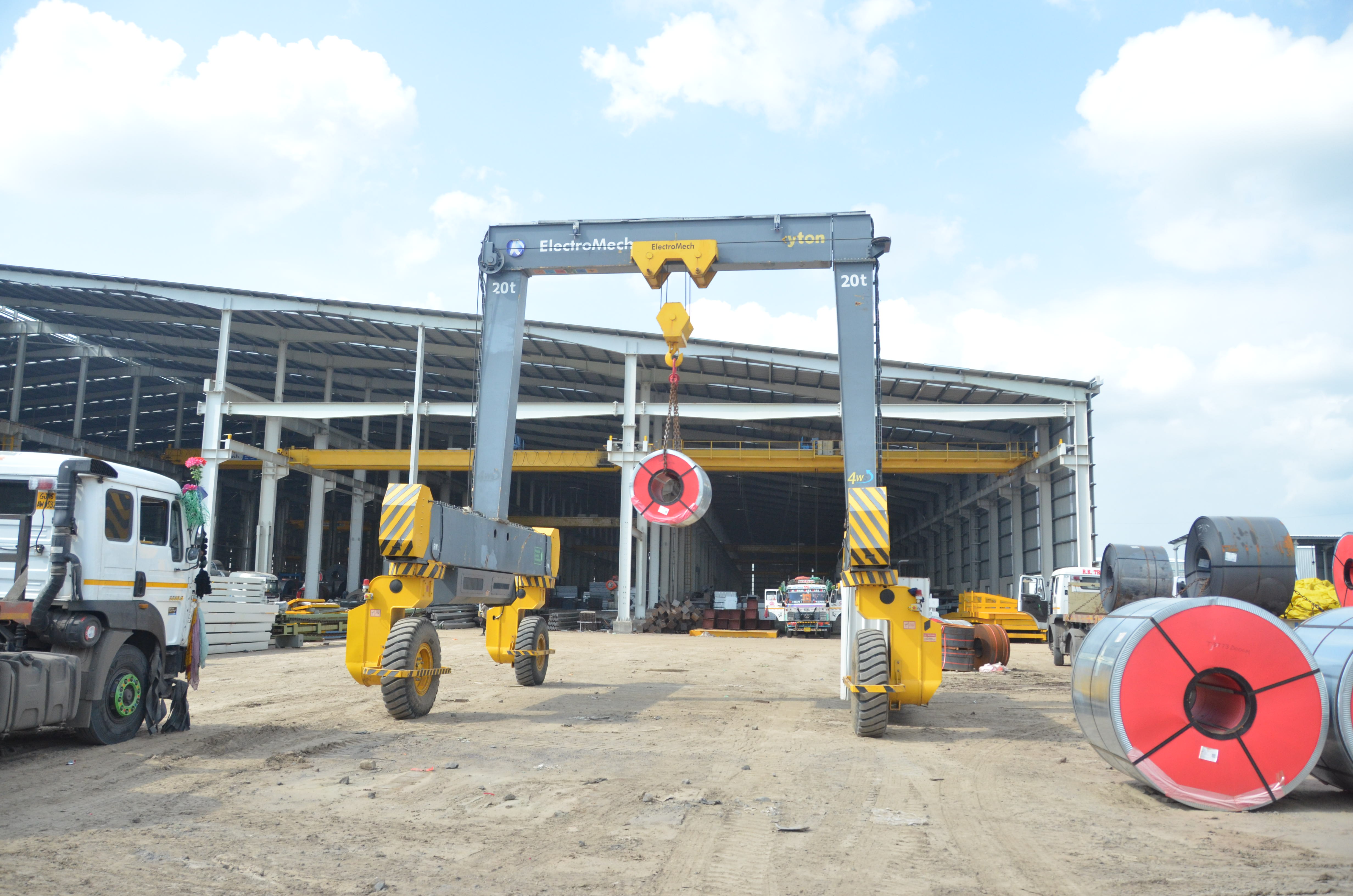

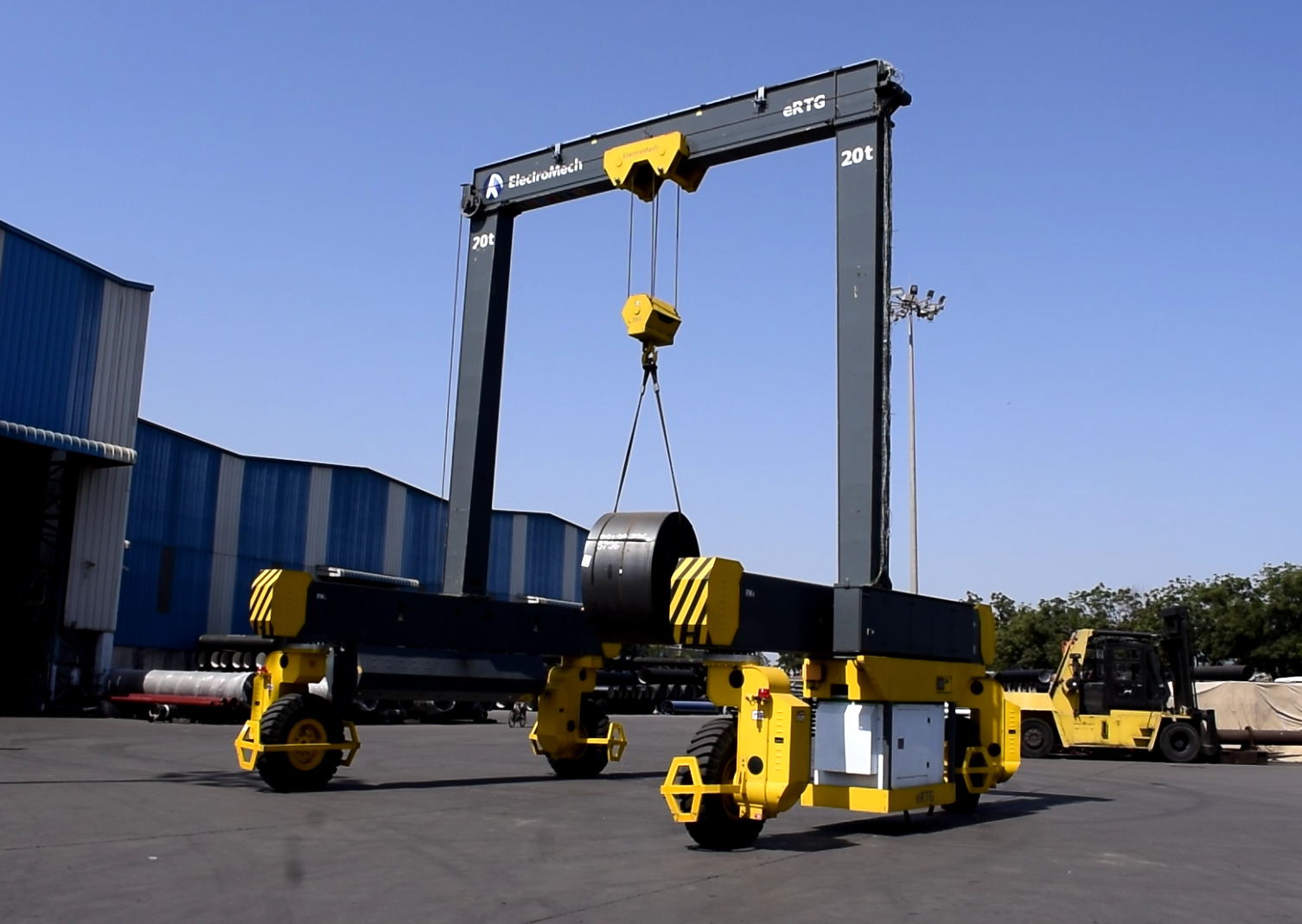

tyton™ is an electrically driven Rubber Tyred Gantry Crane. The Rubber Tyred Gantry Crane, popularly known as RTG the world over, is a tyre-mounted gantry crane that can be moved anywhere easily across large outdoor yards or factories. Being tyre-mounted, it does not require permanently fixed rails, which means extreme flexibility in movement across the shop or yard area. This revolutionary equipment has been completely designed, developed, and manufactured in-house by ElectroMech. Single Girder RTG offer’s a load lifting capacity of up to 32t, with a lift height range of up to 10m. Suitable for indoor & outdoor applications, they can withstand extreme weather and operating conditions. In addition, they are incredibly mobile, can be remotely controlled, and can be equipped with intelligent features as per requirements
| 1 | Capacity (t) | (5 - 32) |
| 2 | Span (m) | (6 - 10) |
| 3 | Height of Lift (m) | (6 - 10) |
| 4 | Location | Indoor & Outdoor |
| 5 | Ambient Temperature (Degree Celsius) | Upto 50 |
| 6 | Motions Using VFD (m/min) | Main Hoist Speed (2 - 3) Cross Travel Speed (10 - 15) Long Travel Speed (25 - 40) |

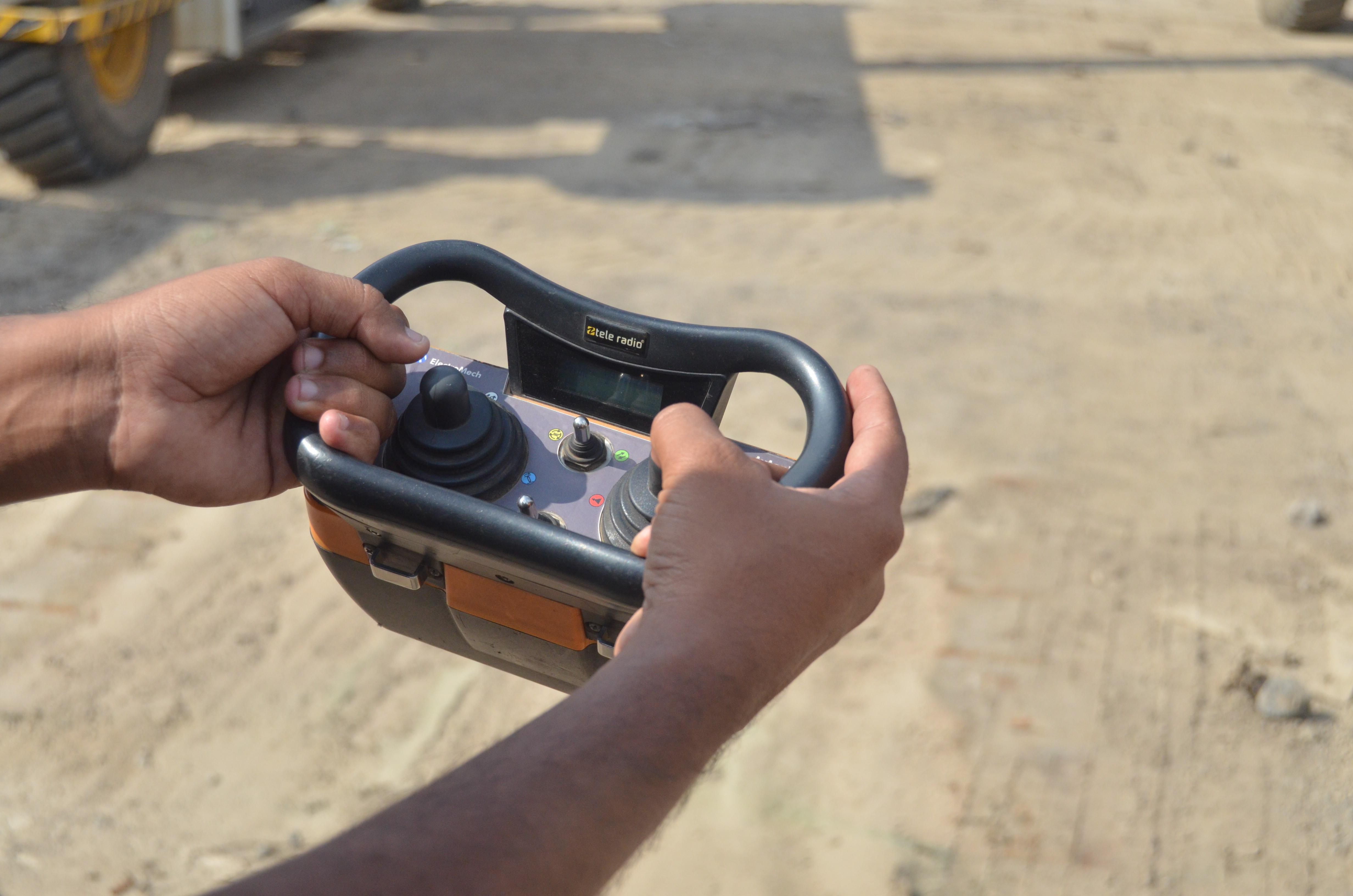

| 7 | Operation Control | Radio Remote Control |
| 8 | Power Source | Diesel Generator Mounted on Crane |
| 9 | Steering | Two Wheel Steering (2WS) |
| 10 | Gradability | Up to 5% |
| 11 | Tyre | Pneumatic tubeless tyres |
Standard Features
Travel warning alarms (4nos)- "Emergency Stop" button at each corner
- Fire Extinguisher
- Jacking provision for tyre removal
Optional Features
- Operator Cabin control
- Battery-Powered crane
- EMote for remote monitoring of crane
- Load indicator
- Customised span & height
- Four Wheel Steering (4WS)
- Gradability- up to 5%
- Intact Floor- Constant pressure on floor irrespective of load lifted
- Versatility – Capability to work on various surfaces
- Portability- Can be easily disassembled and transported
- Low-Cost Ownership- Low maintenance, high uptime, high productivity, low expense on infrastructure
- Electrically Driven- No hydraulics involved
- High Safety- Safe handling of Long, Heavy & Odd -Shaped items
- Reliability- Proven Technology equipment from ElectroMech with assured service support
- Flexibility- Can be operated on uneven surfaces
- Robust Structure- Designed for dynamic loads
